Description

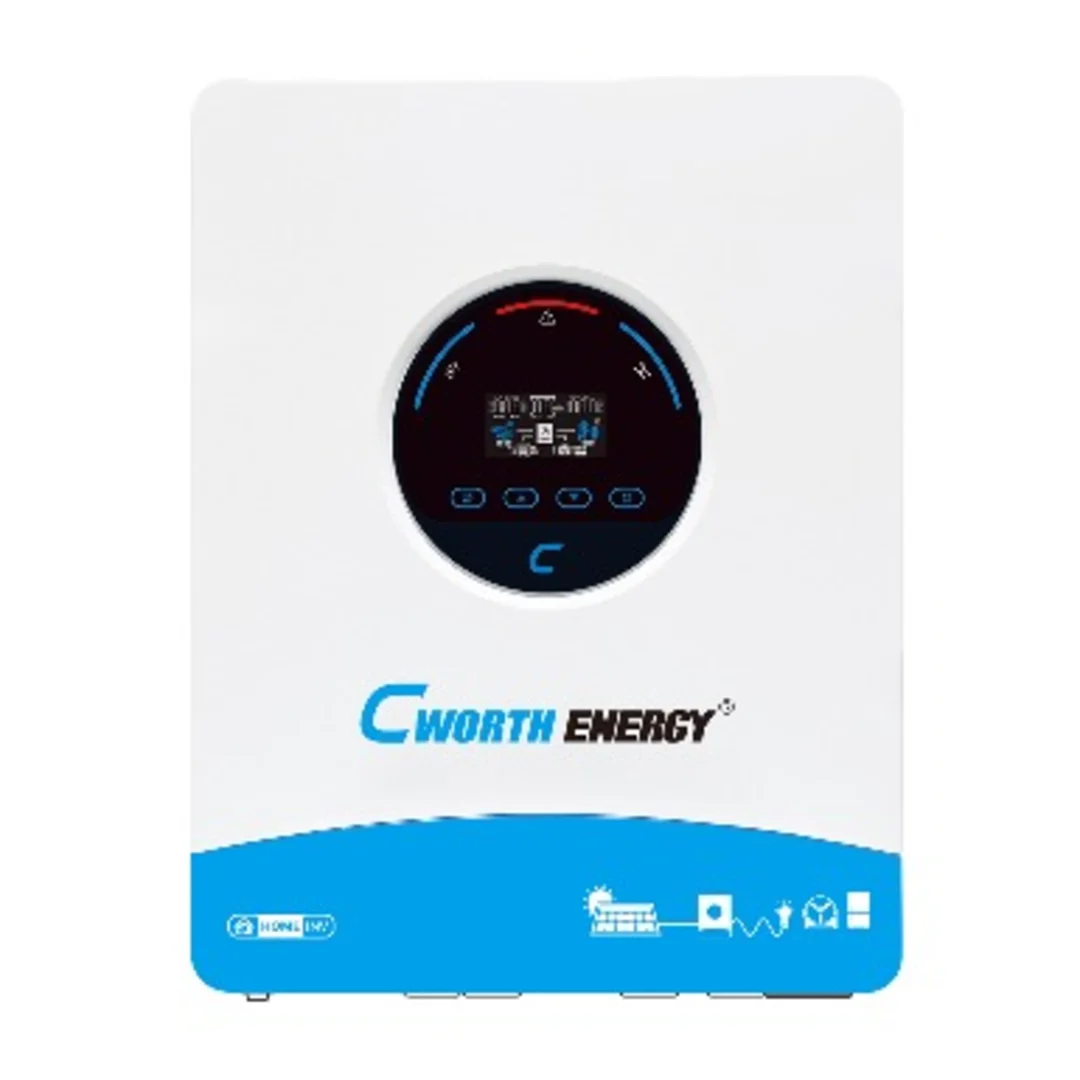

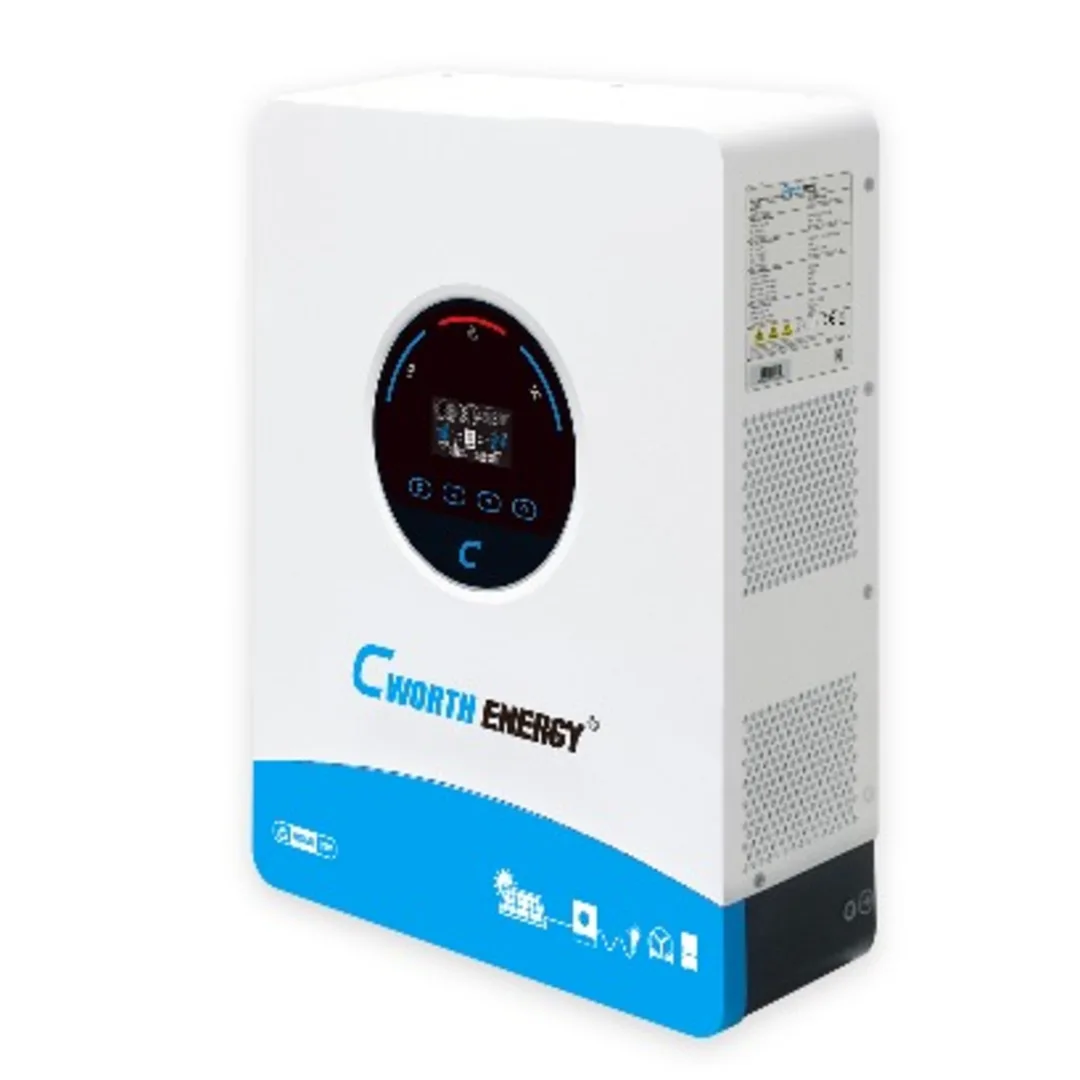

Cworth Energy CE-H3.6K-ECO is a . It is part of the “ECO” series, which is noted for its silent fan operation (≤50 decibels) to address noise issues found in older models.
Key Technical Specifications
- Rated Power: 3600W / 3.6kVA.
- Battery System: 24V DC input.
- Solar Charging: Features a built-in MPPT controller with a 120A maximum PV charging current.
- PV Input: Supports up to 3600W of solar panels with a high voltage tolerance of 500V VOC and a wide MPPT tracking range of 120V–500V.
- Output: 230V AC pure sine wave, making it safe for sensitive electronics.
- Protection: IP54 rated against dust and water splashes, with built-in smart overload and short-circuit protection.
Performance & Capabilities
The unit is marketed as a robust solution for medium household or office loads:
- Supported Appliances: Capable of powering lights, TVs, fans, refrigerators, office systems, and even 1HP to 2HP inverter-type air conditioning units when properly configured.
- Hybrid Functionality: Supports seamless power switching between solar, grid (NEPA), and generator inputs.
- Fast Charging: Capable of 80A AC charging from the grid or generator to quickly top up batteries during limited power windows.
