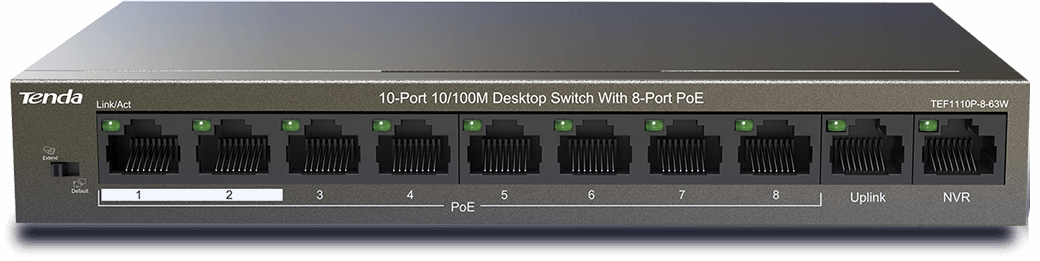

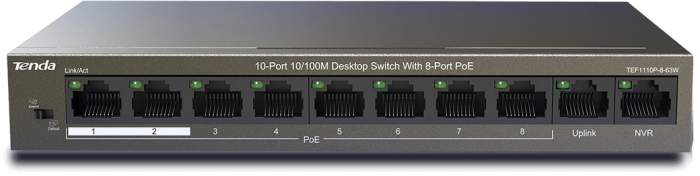

TEF1110P-8-63W 10-Port 10/100M Desktop Tenda Switch with 8-port Poe

Products Description
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

Key Features

* Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards.
* 8 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply,
2 * 10/100 Mbps Base-TX RJ45 ports for data transmission.
* 1 K MAC address table and MAC address auto-learning.
* IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
* 2 Gbps backplane bandwidth.
* Maximum power consumption of a single port: 30 W; Maximum power consumption of the switch: 58 W.
* Supports smart management functions, including extend mode, one-key VLAN and QoS.
* Supports desktop and wall-mounting, plug and play

Product Features

6 kV lightening protection
The switch offers various safety and protection types, including 6 kV lightening protection, PSE short-circuit protection, PoE overload protection, surge current protection etc.
Dual uplink port
With two 10/100Mbps uplink ports, the switch can meet the current demand for uplink bandwidth with NVR and router connection.
Standard PoE power supply
The switch support IEEE 802.3at/af standards. The entire switch offers a maximum PoE power output of 58 W, and 30 W for a single port, to supply power to and data transmission with IP cameras.
250 m data transmission
It supports extend mode and one-key VLAN. The hardware DIP mode switch makes long distance transmission effortless.
